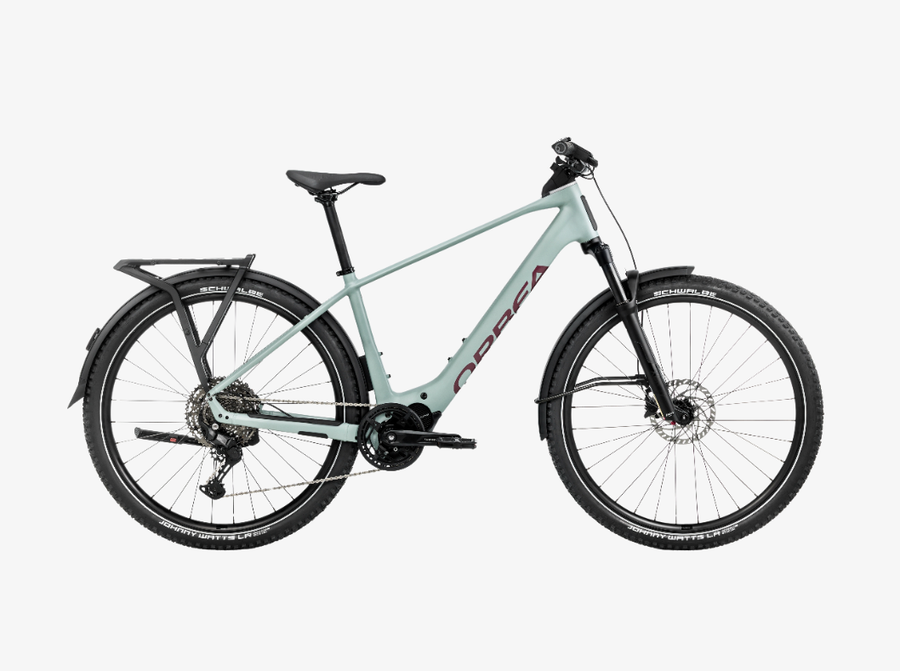

The Orbea Kemen Adv 20 2026 is an urban adventure electric bike designed for riders who want to follow the trail, head to the beach, and escape the everyday on a fully equipped, capable platform. Built around the Orbea Kemen top-bar 2026 hydroformed alloy 6061 frame with high-polish finish, OLD 148, belt drive compatibility, and trailer compatibility with the through-axle system, the Kemen Adv 20 pairs an SR Suntour XCR34 100 mm air fork with Q15x110 axle for a smooth, composed ride on urban streets and rougher terrain. Two frame mounting points accommodate a bottle, lock, or range extender, while the FSA 1-1/2" integrated aluminium cup headset and Orbea cockpit ecosystem complete a versatile, everyday-ready frame platform.

Power is provided by the Shimano EP600 motor with Shimano Steps EM600 cranks and a 40T alloy chainring with chainguard, backed by an Orbea Internal 630 Wh battery for extended range on longer adventures and commutes. The Shimano EN500 display provides clear, intuitive motor management, while the KMC eGlide chain ensures clean, efficient power transfer. Charging is handled by the Orbea 2nd Generation eBike Smart Charger, with an additional USB-C connection on the top tube for charging your phone or any compatible device on the go.

The Kemen Adv 20 runs Shimano Cues mechanical shifting — SL-U6000 shifters, a Shimano Cues U6000 GS Shadow rear derailleur, and a Shimano CS-LG400 11-50T cassette — for wide-range, reliable gear changes on any gradient or terrain. Braking is handled by Magura AT2 hydraulic disc brakes with Easy Route Connection for powerful, consistent stopping power in all weather and trail conditions. The cockpit runs an Orbea Urban integrated handlebar with 9° backsweep, 50 mm rise, and 720 mm width — with an integrated front position light and USB-C charging point — paired with an SP Connect smartphone mount compatible with Quadlock for secure, easy phone mounting.


Urban and adventure practicality is fully covered with a Supernova Starstream Pure low-beam front light, Supernova TL3 Z rear light, trail-specific Curana Apollo Orbit 70 mm full mudguards, and an Orbea RR-02 alloy rear carrier with MIK HD, MIK Side, and Ortlieb QL3.1 system supporting up to 30 kg of cargo. Schwalbe Johnny Watts LR 60-622 tyres with reflective tape, VP-892 pedals with reflectors, a Selle Royal Vivo Ergo saddle, SP03 alloy 31.6 mm seatpost with 0 mm setback, and a Massload rear adjustable kickstand with upgraded springs complete a fully equipped everyday adventure package.
