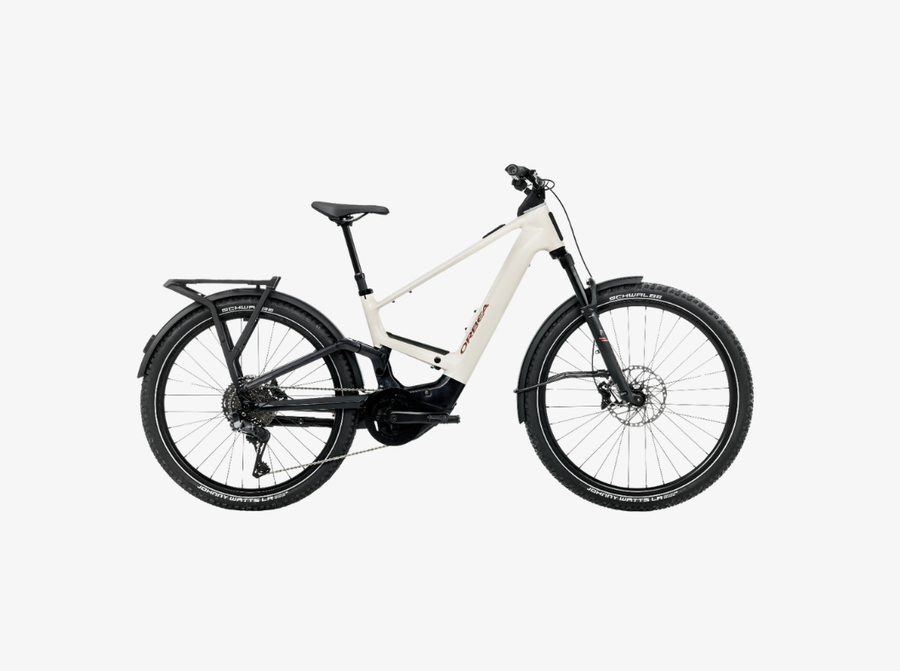

The Orbea Muga 20 is a fully equipped premium urban electric bike that builds on the Muga platform with a higher-spec component package for riders who want more performance, more range, and more refinement in their daily commuter. Built around the Orbea Muga 2026 hydroformed alloy 6061 frame — belt drive compatible, carrier ready, and integrated with the Orbea cockpit ecosystem — the Muga 20 upgrades to a Fox 34 Float AWL Sport 120 mm Rail 2.0 fork with Kabolt 15x110 axle and fender and ABS mounts, paired with a Fox Float Performance Trunnion 2-position rear shock in a custom tune for a composed, comfortable ride across all urban terrain. The FSA 1-1/2" integrated aluminium cup headset and Orbea integrated custom kickstand complete a frame package built for serious daily use.


Power comes from the Bosch Performance Line CX BDU3843 mid-drive motor, backed by a larger Bosch Powertube 750 Wh horizontal battery for extended range on longer commutes and multi-stop days. The Bosch System Controller BRC3100 and Bosch Mini Remote BRC3300 provide intuitive motor management, while the Prowheel EB03 alloy crank, 42T alloy chainring, and KMC eGlide chain deliver smooth, efficient power transfer across all conditions. Charging is handled by the Bosch 4A charger.


The Muga 20 steps up to Shimano Cues Di2 electronic shifting — EN605-R shifters paired with a Shimano Cues Di2 U8050 11-speed SGS Shadow Plus rear derailleur and Shimano CS-LG400 11-45T cassette — for precise, effortless gear changes at the touch of a button in any weather or terrain. Braking is handled by Shimano MT420 hydraulic disc brakes for consistent stopping power in all conditions. The cockpit runs an Orbea Urban integrated handlebar with 9° backsweep, 30 mm rise, and 760 mm width — with an integrated front position light — paired with an SP Connect smartphone mount for navigation and ride data.


Urban practicality is fully covered with a Supernova Starstream Pure low-beam front light, Supernova TL3 Z rear light, Curana Apollo Orbit 70 mm full mudguards, and an Orbea RR-02 alloy rear carrier with MIK HD, MIK Side, and Ortlieb QL3.1 system supporting up to 30 kg of cargo. Schwalbe Johnny Watts LR tyres with reflective tape front and rear, VP-892 pedals with reflectors, a Selle Royal Vivo Ergo saddle, and a 31.6 mm OC MC22 dropper seatpost with OC dropper remote complete a commuter build that is ready for every ride, every day.
