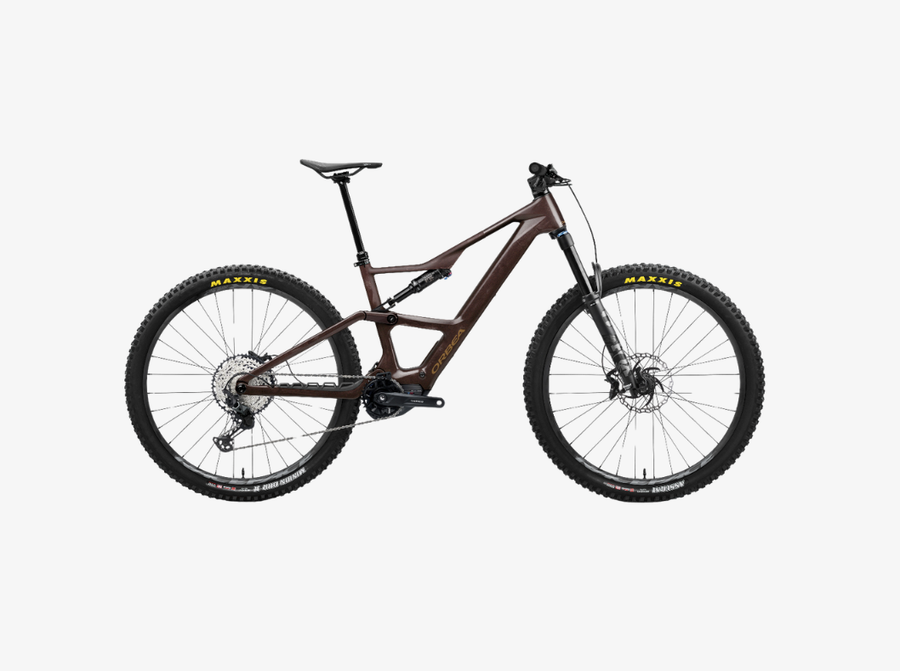

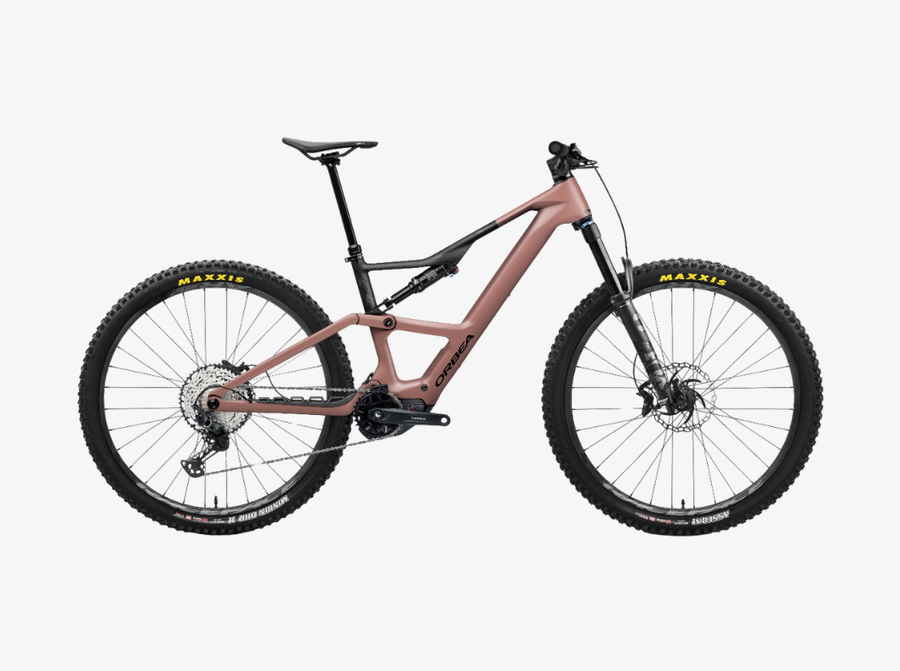

The Orbea Rise LT M20 is a long-travel full-suspension electric mountain bike that combines the lightweight advantage of the Rise LT OMR 2025 carbon frame with the performance credentials of a top-tier trail build. With 150 mm of rear travel and 29" wheels, the M20 pairs a Fox 36 Float Performance 160 mm fork with 3-position Grip damper and a Fox Float Performance 2-position rear shock in a custom tune — a suspension setup that handles technical, demanding terrain with composure and precision.

The Concentric Boost 12x148 rear end and alloy 1-1/2" headset complete a frame platform built for aggressive riding and long-term durability.
Power is delivered by the Shimano EP801 RS Gen2 MC motor — a more powerful and refined unit than the EP600 — paired with Shimano Steps EM600 cranks and an Orbea Internal 420 Wh battery for a lightweight, agile ride feel. The EN600-L remote provides intuitive motor management, while the ethirteen Helix Core espec Direct Mount 32T chainring with 55 mm chainline and Orbea eBike chainguide keep the drivetrain tracking cleanly through rough and rooted terrain. Charging is handled by the Orbea 2nd Generation eBike Smart Charger.

The drivetrain runs a full Shimano SLX M7100 groupset — I-Spec EV shifters, SGS Shadow Plus rear derailleur, and a Shimano CS-M7100 10-51T 12-speed cassette — for wide-range, reliable shifting on any gradient. Braking is handled by Shimano M6120 hydraulic disc brakes with Shimano RT64 rotors — 203 mm up front and 180 mm at the rear — for powerful, consistent stopping power on steep descents. The cockpit features an OC Mountain Control MC31 800 mm handlebar with 20 mm rise, OC MC20 0° stem, OC Lock On grips, and an OC CM-05 computer mount compatible with Garmin and Sigma units.

Maxxis Assegai 2.50" 3CG/EXO+/TR MaxxGrip up front and Maxxis Minion DHR II 2.40" WT 3C MaxxTerra EXO+ TR at the rear deliver a tried-and-tested tyre combo for grip, braking traction, and durability on aggressive terrain — mounted on Race Face AR 30c tubeless-ready 29" wheels. The Fizik Terra Ridon X5 145 mm saddle and 31.6 mm OC MC22 dropper seatpost with Shimano SL-MT500 I-Spec EV lever complete a carbon long-travel build that punches well above its weight.
