Orbea
Wild LT H20

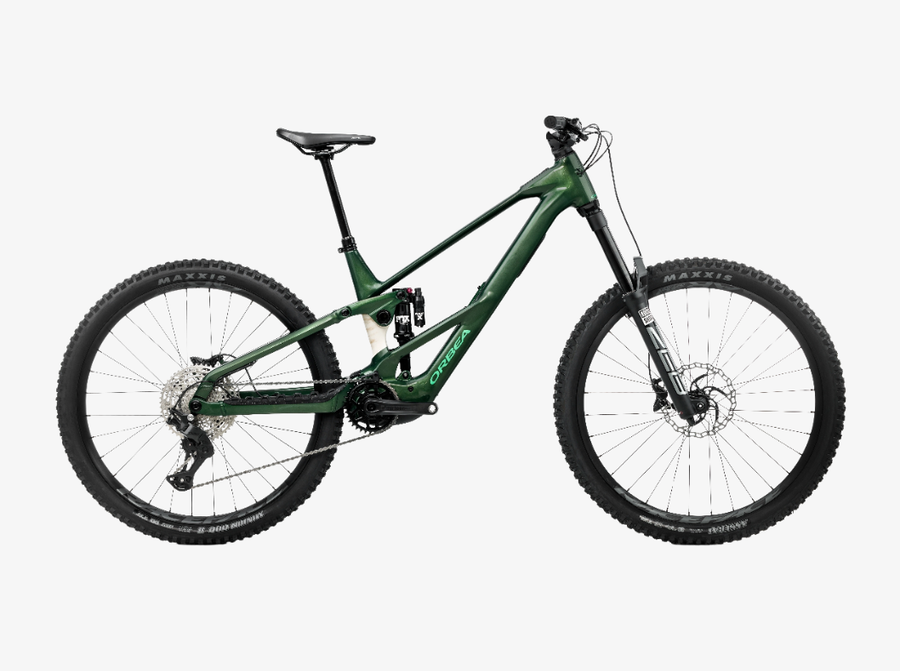

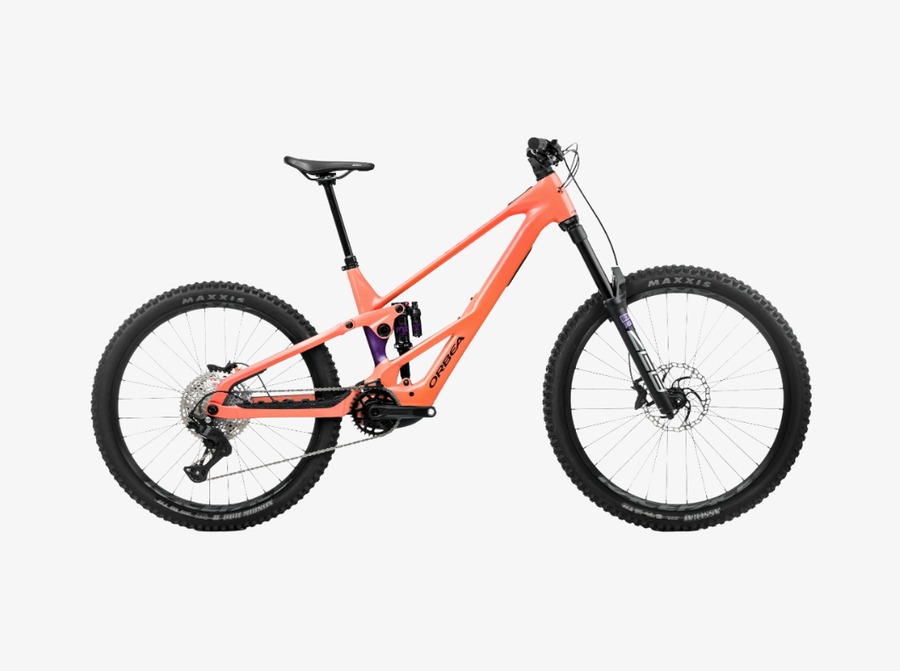

The Orbea Wild LT H20 is a long-travel electric mountain bike that brings serious trail capability to the Orbea Wild Hydro alloy platform, delivering premium suspension, Avinox motor power, and a proven component package for riders who want maximum performance at a more accessible price point. Built around the Orbea Wild Hydro alloy frame with Concentric Boost 12x148 rear end and Acros ZS56 headset, the H20 pairs a RockShox ZEB Select Rush RC 170 mm fork with a Fox Float X Performance 2-position rear shock at 205x65 mm — a high-performance suspension package delivering 170 mm of controlled, composed long-travel performance on demanding terrain.
Power comes from the Avinox M2 motor, a strong, reliable unit for long trail rides, backed by an 800 Wh Avinox battery for extended range on longer adventures. The Avinox DPC100 display and Avinox BC100 remote provide intuitive motor management, while the ethirteen Helix Race espec Direct Mount 34T chainring with 55 mm chainline and Orbea eBike chainguide keep the drivetrain clean and efficient through every trail feature. Charging is handled by the Avinox 4A charger.
The drivetrain runs Shimano M6200 I-Spec EV shifters, a Shimano Deore M7200 SGS Shadow RD+ rear derailleur, Shimano Carbon Spokes-M6200 10-51T 12-speed cassette, and Shimano M6100 chain with ethirteen Helix Core Alloy espec cranks for smooth, wide-range shifting on any gradient. Braking is handled by Shimano MT420 hydraulic disc brakes with Galfer Wave 200 mm rotors front and rear for powerful, consistent stopping power on steep and technical descents. The cockpit features an OC Handlebar MC30 Rise 20, OC Mountain Control MC20 0° stem, OC Lock On grips, and OC CM-05 computer mount.
The Wild LT H20 is available in two wheel configurations, full 29" or Mullet with 29" front and 27.5" rear — both on Race Face AR 30c tubeless-ready wheels. Maxxis Assegai EXO TR up front and Maxxis Minion DHR II 2.40" 120x2TPI 3C MaxxTerra DD TR at the rear deliver proven grip and braking traction on demanding terrain. The Fizik Terra Aidon X1 saddle and OC Mountain Control MC22 dropper seatpost with Shimano SL-MT500 I-Spec EV lever complete a long-travel alloy build that delivers serious performance on every trail.
Regular price
$9,999.00 AUD
per
Wheels
Colour
Description
What's Included
Certification
E-Micromobility Vehicle Information
Wild LT H20
Regular price
$9,999.00 AUD
per
Wild LT H20
Wheels
Colour
Featured Specs
01
02
03
04
01
02
03
04
W
i
l
d
L
T
H
2
0
- System
- Motor
- Speed
- Battery
- Range
- Avinox DPC100 display; Avinox BC100 remote
- Avinox M2
- 25 km/h road-legal
- Avinox 800 Wh
- 100+ km with pedal assist
Bike specification
- Frame
- Fork
- Wheels
- Tyres
- Gearing
- Brakes
- Pedals
- Seat
- Weight
- Capacity
- Warranty
- Orbea Wild Hydro alloy, Concentric Boost 12x148, available in 29" or Mullet configuration
- RockShox ZEB Select Rush RC, 170 mm travel
- 29"/29" OR 29"/27.5" Mullet — Race Face AR 30c tubeless-ready (buyer's choice)
- Maxxis Assegai EXO TR (front), Maxxis Minion DHR II 2.40" 3C MaxxTerra DD TR (rear)
- Shimano Deore M7200 12-speed, 10-51T cassette, SGS Shadow RD+ rear derailleur
- Shimano MT420 hydraulic disc brakes, Galfer Wave 200 mm rotors front and rear
- Compatible with standard pedals
- Fizik Terra Aidon X1 saddle
- 22 kg
- 135 kg
- Standard manufacturer warranty
eBike Technology
- System
- Motor
- Speed
- Battery
- BMS
- Range
- Display
- Avinox DPC100 display; Avinox BC100 remote
- Avinox M2
- 25 km/h road-legal
- Avinox 800 Wh
- N/A
- 100+ km with pedal assist
- Avinox DPC100 display with Avinox BC100 remote
Fitted accessories
- Lights
- Lock
- Phone Holder
- Bottle holder
- Carrier Rack
- Mudguards
- Kickstand
- Compatible with optional accessory
- Compatible with optional accessory
- Compatible with optional accessory
- Compatible with optional accessory
- Not included
- Compatible with optional accessory
- Not included
D
o
n
'
t
t
a
k
e
o
u
r
w
o
r
d
f
o
r
i
t
G
o
t
q
u
e
s
t
i
o
n
s
?
W
e
'
v
e
g
o
t
y
o
u
!
🚴
How do I choose the right e-bike?
Let us know what you’re looking for — or visit us in-store and we’ll walk you through 5 simple questions to match you with your perfect ride:
Do sales come with a warranty?
Yes — all sales include a 12-month parts warranty. Labour time is not included, but we’re always happy to assist with service and repairs and can work with our suppliers for after sales support to ensure you feel safe and secure on your new wheels.
Do I need to book a test ride?
No bookings required — just drop in!
We’ll help you test ride multiple bikes or discuss options that suit your needs.Tip: Call ahead or message us first to confirm availability of the specific model you’re after.
What bike styles do you stock?
We stock Australia’s largest range, including:
- Step-throughs
- Commuters
- Folding bikes
- Fat-tyre
- Mountain
- Cargo bikes
Don’t see what you want? Ask our team, and we’ll be able to source it!
How much do your bikes cost?
- New e-bikes: from $1,500
- Second-hand models: from $600, depending on stock
All bikes are fully supported and serviceable by our in-house mechanics.
Can I ride home the same day?
Yes! If your bike is in stock, we’ll assemble and prep it so you can ride straight out the door upon payment.
What’s the battery range per charge?
Between 30 – 115 km depending on:
- Battery size (9 Ah – 17 Ah)
- Rider weight
- Terrain and riding style
Ask our friendly staff or look at the specs of the bike your after for more info! We’re happy to help.
High torque or low torque — what’s the difference?
- High torque: better hill climbing and carrying heavier loads
- Low torque: better efficiency and battery life on flat terrain
Do you ship?
Yes — we deliver locally across Sydney and can ship nationally for a delivery fee.
We also partner with supporting stores across Australia to assist with assembly where possible.
Do you assemble the bikes?
Absolutely. Our mechanics have 15 + years’ experience and are among the most qualified in the country.
Do you offer after-sale support?
Yes — your first service is free!
We’re also always available to provide ongoing maintenance, tune-ups, repairs, and support to keep your bike running perfectly as part of our workshop department.
